Tuopuke anodized rosin press cage kit RK08
$310.00$289.00
  • Support Online Customer Service

  • Free shipping on orders over $100

  • Best-in-business warranty service

  • Guaranteed safe checkout with Paypal

  • DETAIL
  • SPECIFICATION
  • Q&A
  • WARANTY
  • REVIEWS

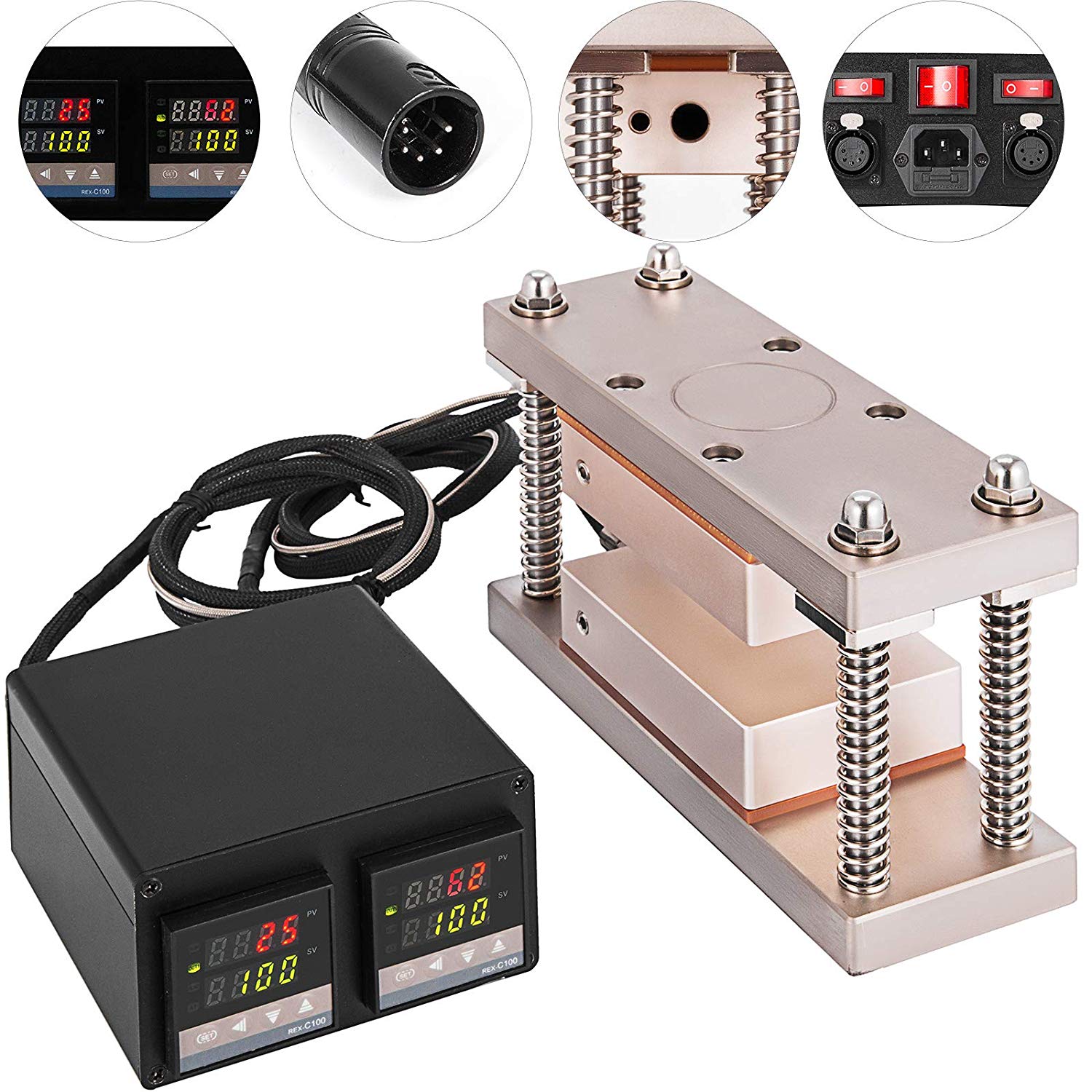

Tuopuke 3x7"  Rosin Caged Cube Kits With Dual Anodized Plates in Rosin Cube, Dual Heaters, Dual Temp Sensors, Temperature Control Box - Complete Setup to Pair with A Hydraulic Press | 3x7" Anodized Rosin Caged Cube Kits -600 Watts - Dual Heating Rods


Features:


3x7" Anodized Caged Heated Plates - 3.5-28g Amount Was Recommend to Press At a time; Procure A High-yield Rosin Heat Press Machine to Be Paired with 12 - 20 Ton Hydraulic Shop Press.


Easy Setup - Completed Setup Before Shipment, Move onto Hydraulic Press for plug and Play.

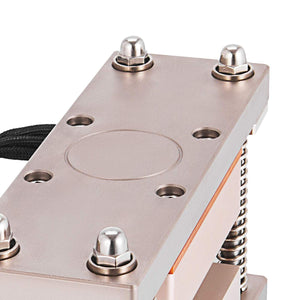

Food-grade Working Surface - Dual Heated Platens Made of Anodized Aluminum Guarantee to Clean Easily.

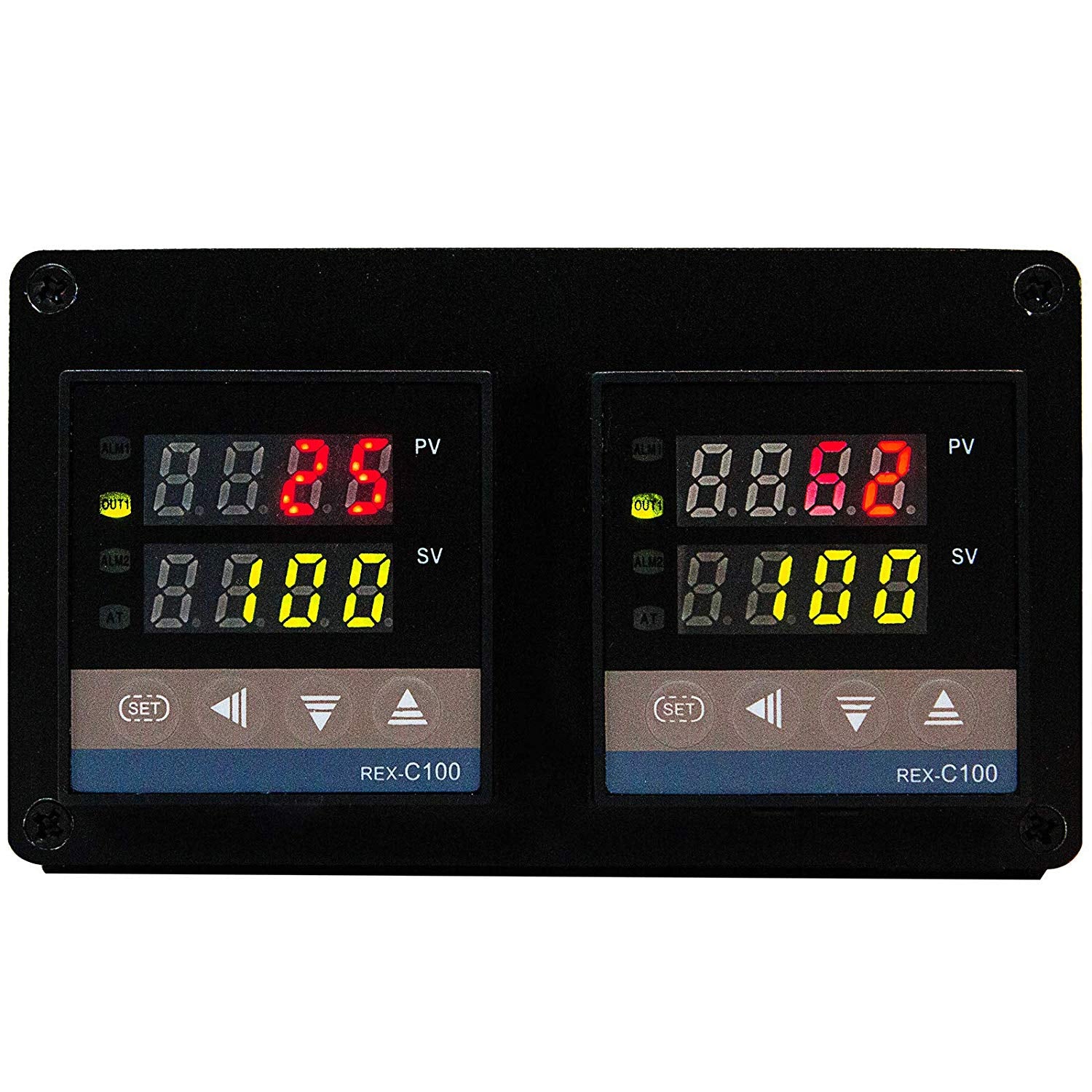

Accurate Temp Detected - 20 Amp Relay and Replacement Fuse Attached, Separated Temperatures Probes and Heating Rods Obtain Accurate Temp.

Long Working Life Guaranteed - More Than 6,000 Times Service of Heating Rods and 20 Amp Relay and Replacement Fuse Attached.

Perfect Alignment - Bottom and Top Platen Move up Evenly by Four Pillars.

Evenly Heating Up - Dual Heated Plates Heat up to Setting Temp in 5-10 Minutes by 700 Watts Heating Rods.


Notice:


It is Fully Assembled at the Factory. Simply Move Cube Kit to Hydraulic Shop Press and Begin Working.
Does Not Fit Some A-Frame Press, H-Frame is Recommended for Proper Clearance.

Well-packaged, without Any Marks on Thickened Plain Carton.

Support Use about Yield and Press.


Packing List:
1Pcs x Anodized Plates Rosin Cube
1Pcs x Rosin Control Box
Control Box Instruction Manual
 1Pcs Screwdriver Tool


Instructions to Secure Bottom Platen to Hydraulic Press Frame:

1.Install the top heated plates onto the ram of the hydraulic press.
2.Install the bottom heated plate using the threaded rod , then attached to the worktable plate.
3.Lower the ram on the hydraulic press just until both plates touch.
4.Adjust the position of the plates if necessary, so they are aligned.
5.Tighten the nut on the long threaded rod to secure it to the worktable plate below.


How to Avoid the Filter Bags from Blowing out?


Remove excess stems from flowers.
Use less material in your filter bag.
Preheating your material first to get it melty before you begin to apply pressure.
Apply the pressure more slowly.

Tuopuke 3x7"  Rosin Caged Cube Kits With Dual Anodized Plates in Rosin Cube, Dual Heaters, Dual Temp Sensors, Temperature Control Box - Complete Setup to Pair with A Hydraulic Press | 3x7" Anodized Rosin Caged Cube Kits -600 Watts - Dual Heating Rods

Q:How many watts total or per output (plate) ?

A:300w

Q:F or c?

A:Farenheight

Q:Hi, is it used to connect to 220v? thank you. regards

A:YES,We have both for 110v and 220v

Q:What’s the highest temperature it will go to?

A:I wouldn't really worry about what's the highest temperature you can go to from my experience I wouldn't go higher than 190 Fahrenheit..

WARRANTY POLICIES

1. One year warranty on whole machine/parts

2. Five years warranty on flat heating plates

3.Five years warranty on casting and welding parts

4. One year warranty on mug,plate and cap heating elements

5. Free lifetime tecnology support on all orders

Not Warranty on:

- Improper assembly.

- Improper follow-up maintenance.

- Installation of components, parts, or accessories not compatible with the machine as sold.

- Damage or failure due to accident, misuse, abuse, or neglect.

- Labor charges for part replacement or changeover.

- Machine used for commercial activities, including those in rental, demo, or security fleets.
